LIEBIG® SUPERPLUS BLS M16-25/150/30 A4
ARTICLENUMBER9655150304
Simply the best heavy duty self-undercutting anchor in the world
- Automatically self-undercutting, unique heavy duty anchor for push-through installations.
- Simplest, quickest and safest solution on the market.
- Economical: No special drill bits, undercut tools or setting tools.
- Minimal expansion forces allow for small spacings and edge distances.
- A4 for indoor, outdoor and industrial use.
Product overview
Packaging
Carton: 5 / Pack: 20 / Pallet: 1120Weight
702 gEAN
4061245000053Material
stainless steel A4Suitable Conditions
Dry indoor, Humid indoor, rural outdoor, OutdoorApplications
- Power plants
- Guardrails
- Machines
- Base plates
- For dynamic and seismic loads
- Small edge distances or spacings
Base Material
Approved for
Cracked concrete
Non cracked concrete

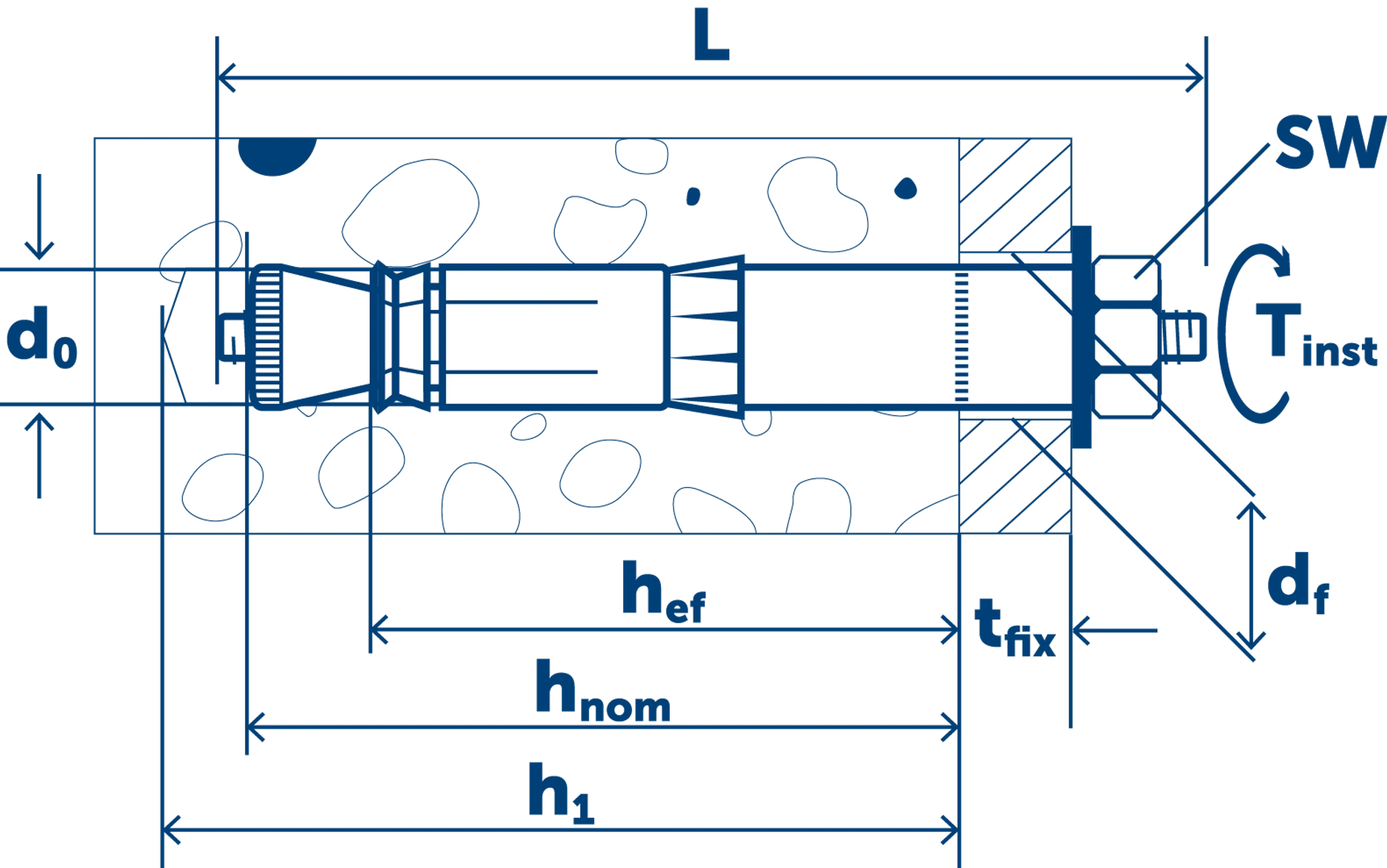

Technical Data
Length (L)
220 mmFixture thickness (tfix,1)
30 mmThread
M16Outer drive
AF24Drill hole diameter (d0)
25 mmHole in fixture (df)
26 mmNominal setting depth (hnom,1)
168 mmEffective setting depth (hef,1)
150 mmDrill hole depth (h1,1)
185 mmInstallation torque max (Nm) (Tinst)
180Minimum base material thickness (hmin,1)
300 mmApprovals / Certificates
Installation
Performance Data
Embedment depth (hnom) | Load direction | Load type | Load value | ETA | |
|---|---|---|---|---|---|
| Cracked concrete, C20/25 | 168 mm | NRec | 28,6 kN | ||
| Cracked concrete, C20/25 | 168 mm | VRec | 63,0 kN | ||
| Non cracked concrete, C20/25 | 168 mm | NRec | 44,2 kN | ||
| Non cracked concrete, C20/25 | 168 mm | VRec | 88,4 kN |
