S-KA+ M10 /30/10+DIN9021 Through Bolt ZP

ARTICLENUMBER9640001425

Improved premium-quality through bolts for fixing in non-cracked and cracked concrete

  • Torque-controlled expansion anchors for pre-, push-through and distance installations.
  • When torque is applied the expansion clip expands developing frictional grip with the drill hole walls.
  • Anchor diameter and max. fixture thicknesses marked on the body. Anchor length letter code marked on the bolt head.
  • M8, M10 and M12 have two different anchorage depths.
  • The use of S-KA setting tool makes serial installation safer and quicker.
  • Seismic performance category C1/C2 (hef,2).
  • ZP for dry indoor use.

Product overview

Packaging

Carton: 25 / Pack: 125 / Pallet: 7000

Weight

66.8 g

EAN

6416031014253

Material

steel

Surface

zinc-plated

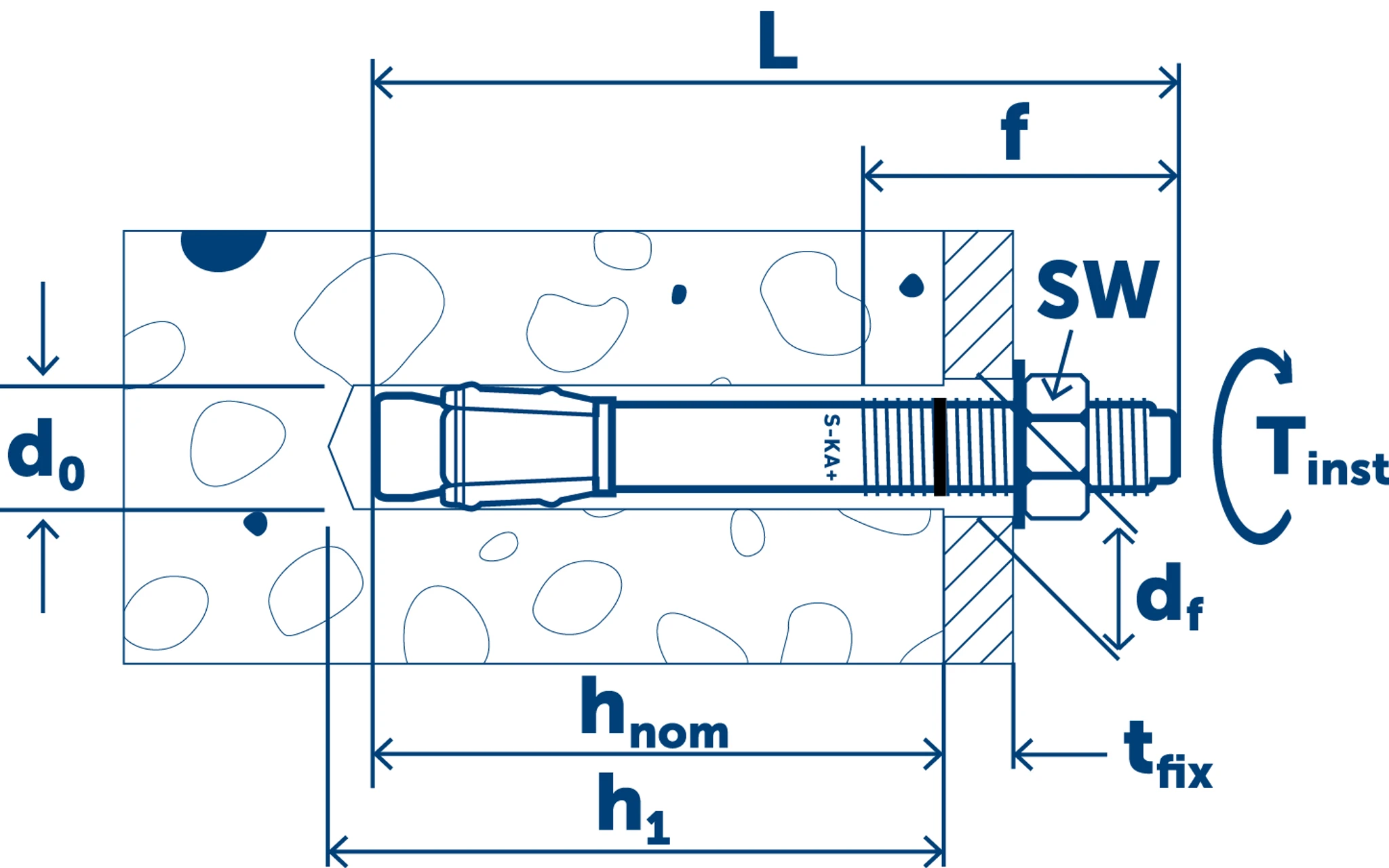

Technical Data

Length (L)

92 mm

Drill hole diameter (d0)

10 mm

Fixture thickness (tfix,1)

30 mm

Fixture thickness (tfix,2)

10 mm

Thread

M10

Outer drive

AF17

Hole in fixture (df)

12 mm

Nominal setting depth (hnom,1)

48 mm

Nominal setting depth (hnom,2)

68 mm

Effective setting depth (hef,1)

40 mm

Effective setting depth (hef,2)

60 mm

Drill hole depth (h1,1)

55 mm

Drill hole depth (h1,2)

75 mm

Thread length (f)

47 mm

Installation torque max (Nm) (Tinst)

30

Minimum base material thickness (hmin,1)

100 mm

Minimum base material thickness (hmin,2)

120 mm
