Drop in anchor J+ 12 ZP Sormat

ARTICLENUMBER9640070103

Zinc plated drop in anchor without flange

  • Drop in anchors for pre-installation with an installation tool.
  • Internal thread for metric bolts and rods.
  • Suitable bolt length is 1-1,5 x the nominal size of the anchor + fixture thickness.
  • ZP for dry indoor and temporary outdoor use.

Product overview

Packaging

Carton: 25 / Pack: 300

Weight

44.34 g

EAN

6416031701030

Material

steel

Surface

zinc-plated

Base Material

Approved for

Cracked concrete
Non cracked concrete

Suitable for

Natural stone
Solid clay brick

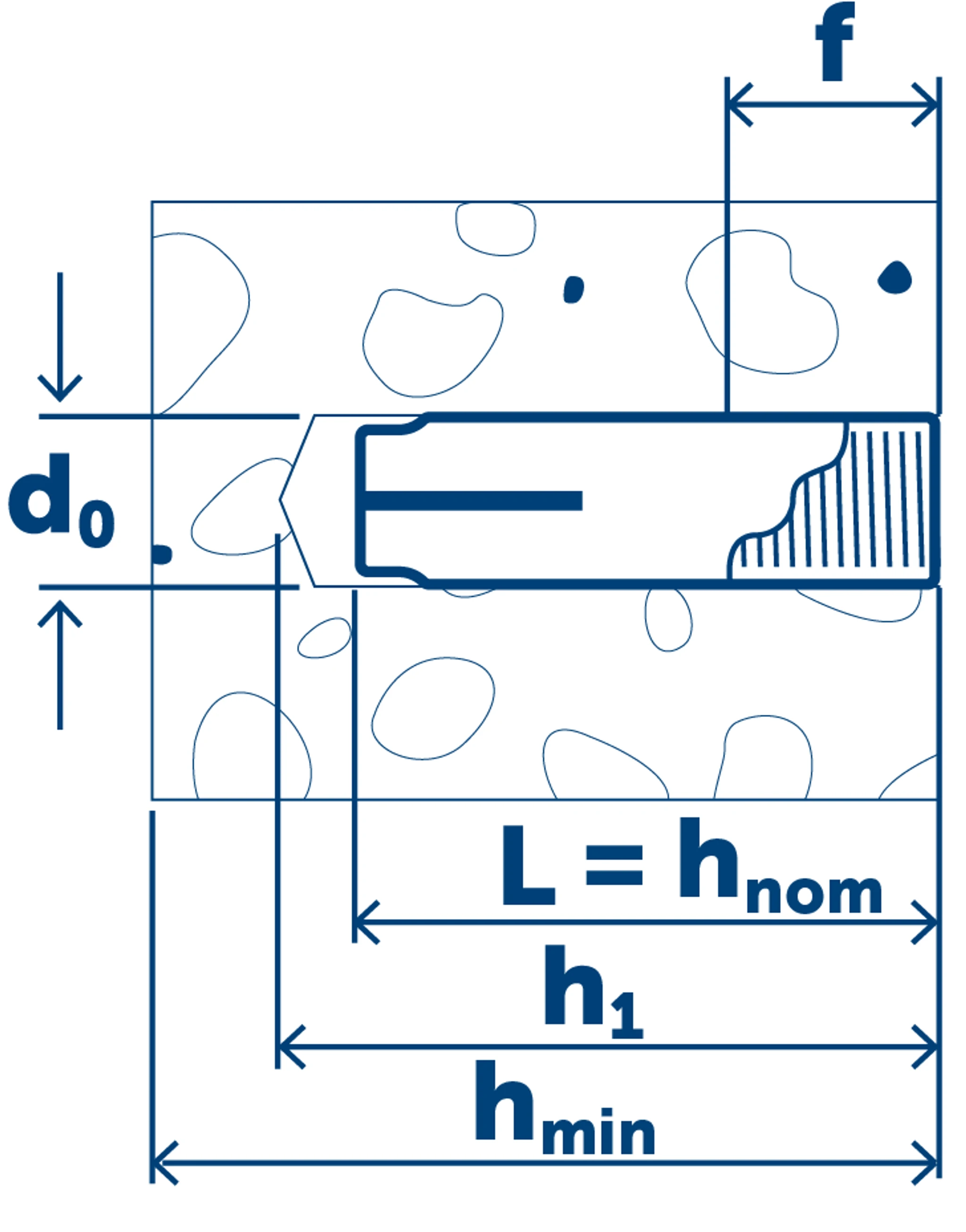

Technical Data

Length (L)

50 mm

Thread

M12

Drill hole diameter (d0)

15 mm

Hole in fixture (df)

14 mm

Thread length (f)

21 mm

Drill hole depth (h1,1)

54 mm

Nominal setting depth (hnom,1)

50 mm

Effective setting depth (hef,1)

50 mm

Minimum base material thickness (hmin,1)

100 mm

Installation torque max (Nm) (Tinst)

38

Electrical number (FI)

1324036

HEPAC number (FI)

3255720

Approvals / Certificates

ETA & DOP (ETA-22-0912)
Fire resistance (ETA-22-0912)
CE Sign (ETA-22-0912)
ETA & DOP (ETA-22-0913)
Fire resistance (ETA-22-0913)
CE Sign (ETA-22-0913)
