Drop in anchor JSR+ 8x25 ZP Sormat

ARTICLENUMBER9640070108

Zinc plated short M8 and M10 drop in anchor with flange

  • Short 25 mm M8 and M10 drop in anchors for pre-installation with an installation tool.
  • Internal thread for metric bolts and rods.
  • Suitable bolt length is 1-1,3 x the nominal size of the anchor + fixture thickness.
  • Shallow drilling depth makes drilling and overhead installation easier.
  • Minimum bottom flange thickness (db) 35 mm in hollow core slab.
  • Suitable e.g. for sprinkler systems.
  • ZP for dry indoor and temporary outdoor use.

Product overview

Packaging

Carton: 100 / Pack: 1200

Weight

9.56 g

EAN

6416031701085

Material

steel

Surface

zinc-plated

Base Material

Approved for

Cracked concrete
Non cracked concrete
Hollow core slab

Suitable for

Natural stone
Solid clay brick

Technical Data

Length (L)

25 mm

Thread

M8

Drill hole diameter (d0)

10 mm

Thread length (f)

12 mm

Drill hole depth (h1,1)

28 mm

Nominal setting depth (hnom,1)

25 mm

Effective setting depth (hef,1)

25 mm

Minimum base material thickness (hmin,1)

80 mm

Installation torque max (Nm) (Tinst)

11

Electrical number (FI)

1324042

HEPAC number (FI)

3255725

Approvals / Certificates

ETA & DOP (ETA-22-0912)
Fire resistance (ETA-22-0912)
CE Sign (ETA-22-0912)

Installation

Manual ImageManual ImageManual ImageManual Image

Documents

Performance Data

Load type

Embedment depth (hnom)

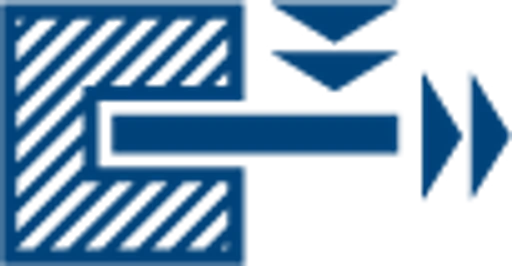

Load direction

Load value

ETA

Concrete, C20/25 : Redundant non-structural systemFRk25 mmForce any direction0,85 kN
Hollow core slab, C30/37 to C50/60FRk25 mmForce any direction2,18 kN
