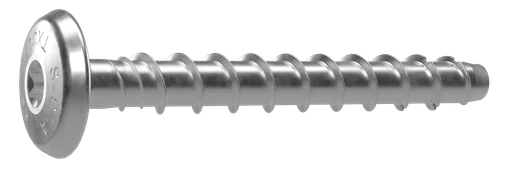

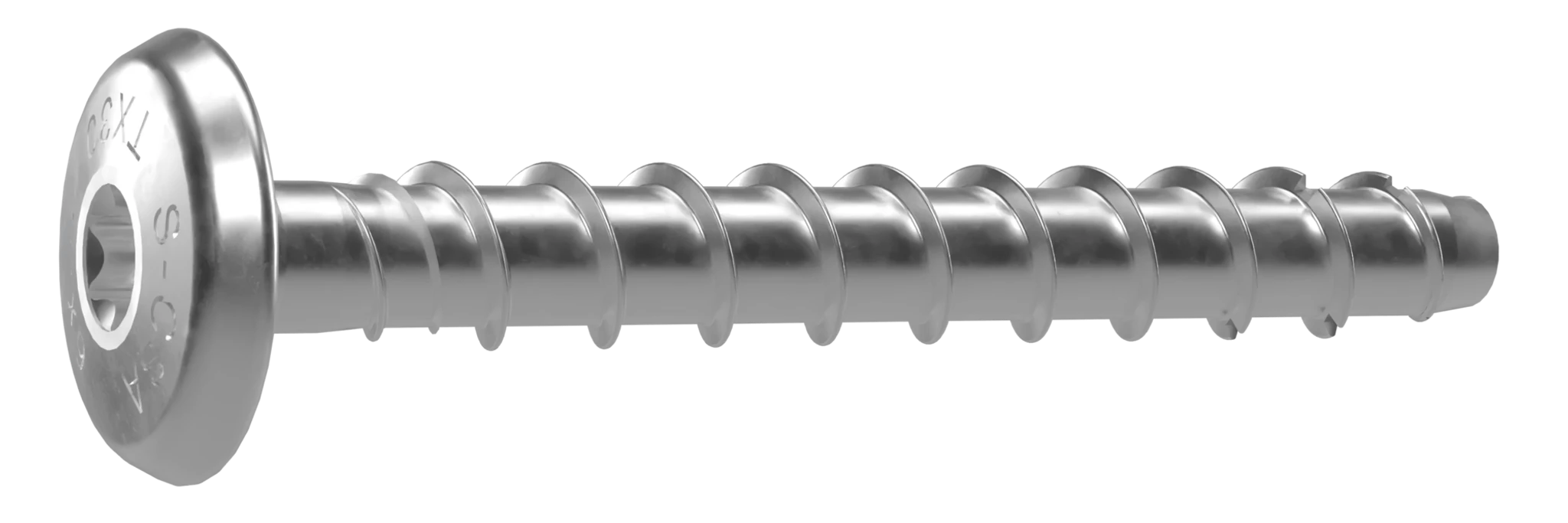

S-CSA P 6x40/5 (FL) T30 ZP Concrete Scre
ARTICLENUMBER9640071555
ETA-assessed 6 mm concrete screw for cracked and non-cracked concrete
- Self-tapping, approved screw anchors for push-through installations.
- Requires a small drill hole diameter. No prescribed tightening torque.
- No expansion forces allowing for small edge distances and spacing
- Fully removable.
- ZP for dry indoor use.
Product overview
Properties
Flat panhead, torx drivePackaging
Carton: 100 / Pack: 500 / Pallet: 28000Weight
13.5 gEAN
6416031715556Material
steelSurface
zinc-platedSuitable Conditions
Dry indoorApplications
- Facade scaffolding
- Seatings
- Shelves
- Cable racks
- Handrails
- Battens
Base Material
Approved for
Non cracked concrete
Cracked concrete
Hollow core slab
Suitable for
Solid clay brick
Solid sand-lime brick
Technical Data
Length (L)
40 mmDrill hole diameter (d0)
6 mmFixture thickness (tfix,1)
5 mmInner drive
TX30Hole in fixture (df)
9 mmNominal setting depth (hnom,1)
35 mmEffective setting depth (hef,1)
27.6 mmDrill hole depth (h1,1)
45 mmHead diameter (dk)
17.4 mmHead height
3.5 mmInstallation torque max (Nm) (Tinst)
14Minimum base material thickness (hmin,1)
80 mmElectrical number (FI)
1324231HEPAC number (FI)
3255751Approvals / Certificates
Documents
Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Cracked concrete, C20/25 | NRec | 35 mm | 1,4 kN | ||
| Cracked concrete, C20/25 | VRec | 35 mm | 5,4 kN | ||
| Hollow core slab, bottom flange thickness 25 mm | NRec | 35 mm | 1,2 kN | ||
| Hollow core slab, bottom flange thickness 25 mm | VRec | 35 mm | 1,2 kN | ||
| Non cracked concrete, C20/25 | NRec | 35 mm | 1,4 kN | ||
| Non cracked concrete, C20/25 | VRec | 35 mm | 5,4 kN |
