S-CSA P 6x60/5/20 (FL) T30 ZP Concrete S

ARTICLENUMBER9640071559

ETA-approved 6 mm concrete screw for cracked and non-cracked concrete

  • Self-tapping, approved screw anchors for push-through installations.
  • Requires a small drill hole diameter. No prescribed tightening torque.
  • No expansion forces allowing for small edge distances and spacing
  • Fully removable.
  • ZP for dry indoor use.

Product overview

Packaging

Carton: 50 / Pack: 250 / Pallet: 14000

Weight

16.9 g

EAN

6416031715594

Material

steel

Surface

zinc-plated

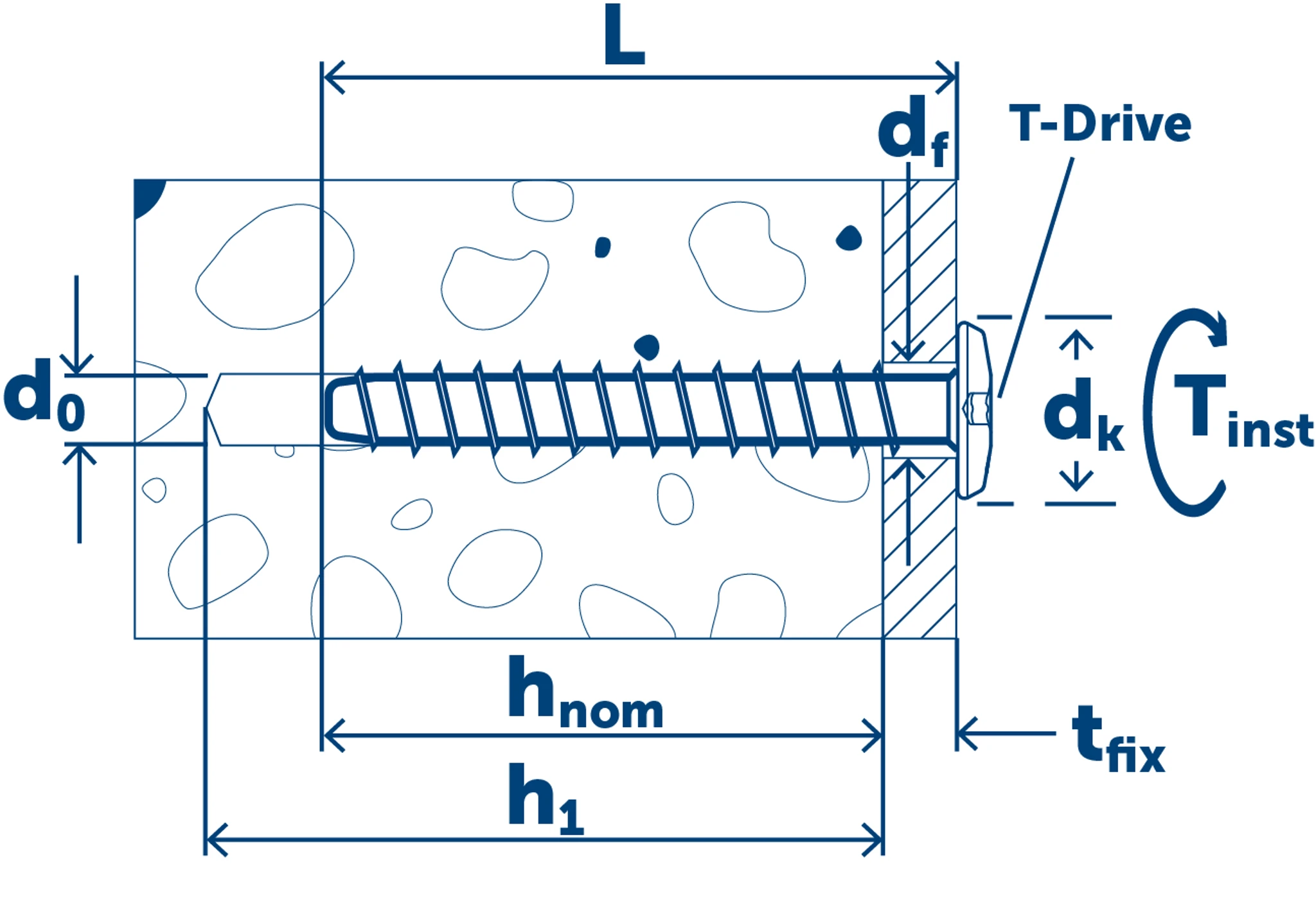

Technical Data

Length (L)

60 mm

Drill hole diameter (d0)

6 mm

Fixture thickness (tfix,1)

20 mm

Fixture thickness (tfix,2)

5 mm

Inner drive

TX30

Hole in fixture (df)

9 mm

Nominal setting depth (hnom,1)

40 mm

Nominal setting depth (hnom,2)

55 mm

Effective setting depth (hef,1)

31.9 mm

Effective setting depth (hef,2)

42.5 mm

Drill hole depth (h1,1)

50 mm

Drill hole depth (h1,2)

65 mm

Head diameter (dk)

17.4 mm

Head height

3.5 mm

Installation torque max (Nm) (Tinst)

14

Minimum base material thickness (hmin,1)

100 mm

Minimum base material thickness (hmin,2)

100 mm

Electrical number (FI)

1324232

HEPAC number (FI)

3255752

Approvals / Certificates

ETA & DOP (ETA-16/0945)
CE Sign (ETA-16/0945)
Fire resistance (ETA-16/0945)
ETA & DOP (ETA-17/1009)
Fire resistance (ETA-17/1009)
CE Sign (ETA-17/1009)
