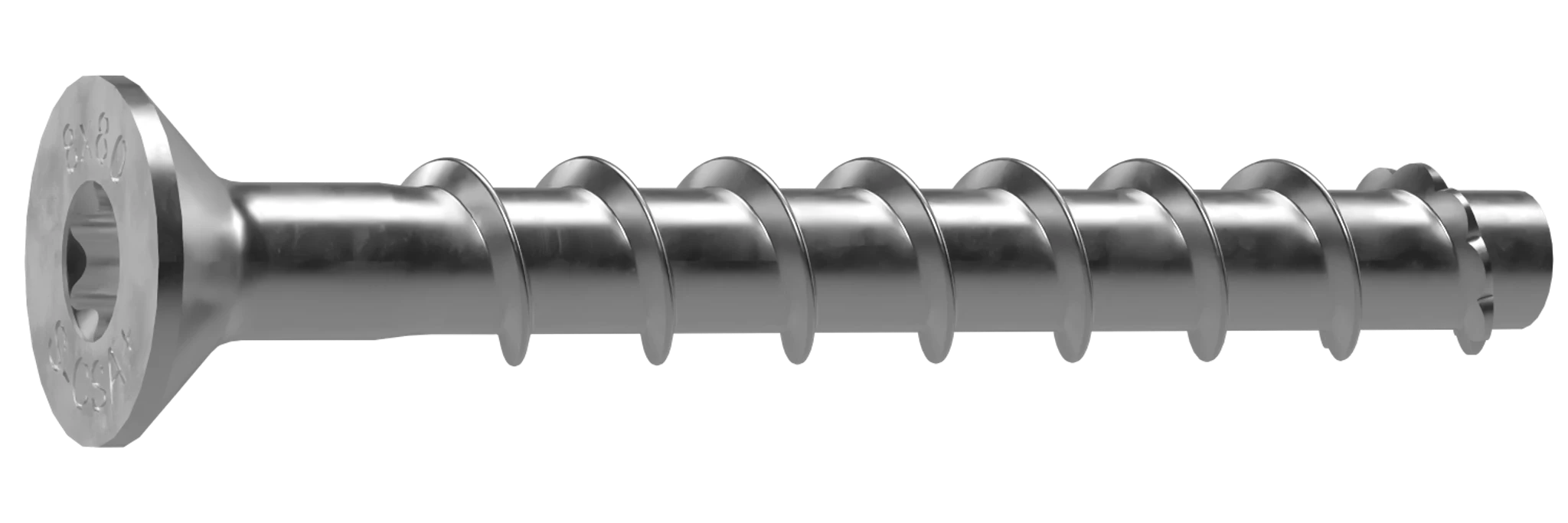

S-CSA+ CS 8x60/10 T45 ZP Concrete Screw
ARTICLENUMBER9640071855
ETA-approved heavy-duty concrete screws for high loads
- Self-tapping, screw anchors for push-through installations.
- Requires a small drill hole diameter. No prescribed tightening torque.
- No expansion forces allowing for small edge distances and spacings.
- Fully removable.
- Seismic performance category C2 with hef,2.
- ZP for dry indoor use.
Product overview
Packaging
Carton: 50 / Pack: 250 / Pallet: 14000Weight
26.8 gEAN
6416031718557Material
steelSurface
zinc-platedSuitable Conditions
Dry indoorApplications
- Handrails
- Seatings
- Battens
- Cable racks
- Shelves
- Temporary fixings
- Facade scaffolding
Base Material
Approved for
Cracked concrete
Non cracked concrete
Suitable for
Solid clay brick
Solid sand-lime brick
Technical Data
Length (L)
60 mmDrill hole diameter (d0)
8 mmFixture thickness (tfix,1)
10 mmInner drive
TX45Hole in fixture (df)
12 mmNominal setting depth (hnom,1)
50 mmEffective setting depth (hef,1)
39.2 mmDrill hole depth (h1,1)
60 mmHead diameter (dk)
18.2 mmInstallation torque max (Nm) (Tinst)
45Minimum base material thickness (hmin,1)
100 mmApprovals / Certificates
Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Cracked concrete, C20/25 | NRec | 50 mm | 3,1 kN | ||
| Cracked concrete, C20/25 | VRec | 50 mm | 10,9 kN | ||
| Non cracked concrete, C20/25 | NRec | 50 mm | 5,7 kN | ||
| Non cracked concrete, C20/25 | VRec | 50 mm | 10,9 kN |
