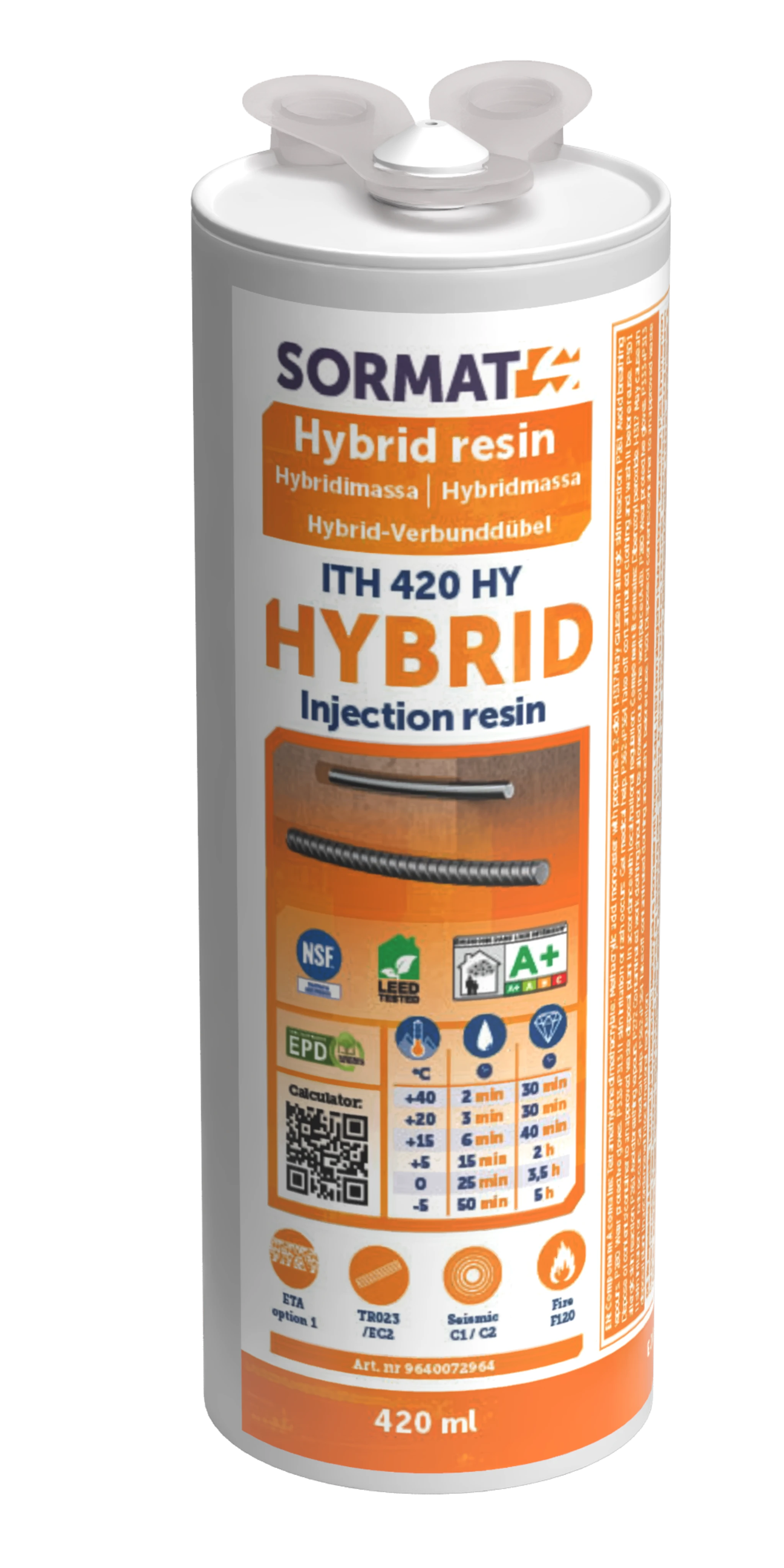

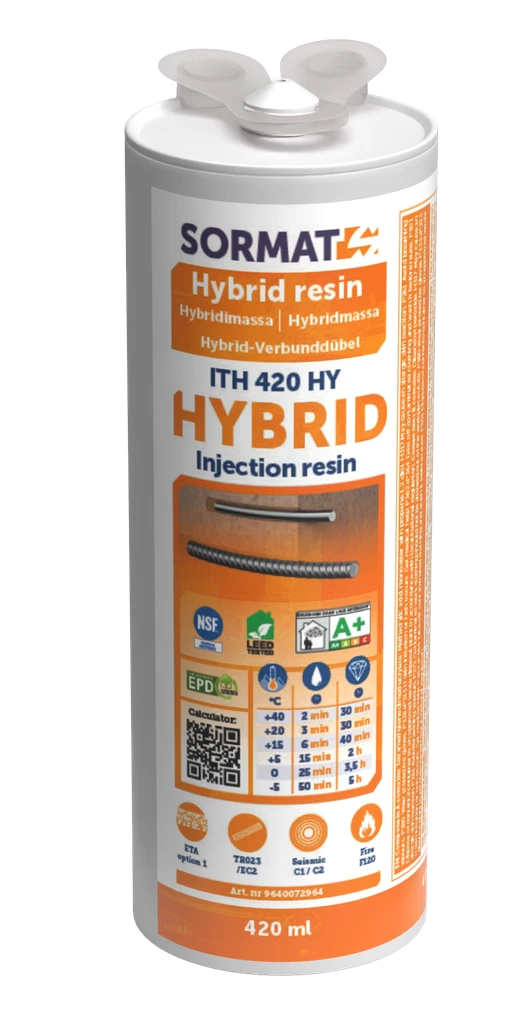

ITH 420 HY Hybrid injection resin

ARTICLENUMBER9640072964

High-performance hybrid injection resin for demanding anchoring and rebar connection

Reliable and Tested: Comprehensive ETA approvals for anchoring and post-installed rebar connections (ETA-24/0646, ETA-24/0647, ETA-24/0648) ensure reliable load-bearing capacity
Fast and Efficient Installation: Rapid curing times and optimized embedment depths save working time and reduce costs on site.
Versatile Application Conditions: Suitable for installation in dry, wet, and water-filled drill holes across a wide installation temperature range (-5°C to +40°C).
For Critical Structures: Approved for use in cracked concrete and for seismic conditions (Categories C1 & C2)
Proven Fire Safety: Tested and approved for fire resistance (up to F120), increasing structural safety in case of fire.

Product overview

Packaging

Pack: 12 / Pallet: 840

Weight

865 g

EAN

6416031729645

Technical Data

GTIN-13

6416031729645

Approvals / Certificates

ETA & DOP (ETA-24-0646)

CE Sign (ETA-24-0646)

Fire resistance (ETA-24-0646)

Seismic resistance (ETA-24-0646)

ETA & DOP (ETA-24-0647)

CE Sign (ETA-24-0647)

Fire resistance (ETA-24-0647)

Seismic resistance (ETA-24-0647)

ETA & DOP (ETA-24-0648)

CE Sign (ETA-24-0648)

Fire resistance (ETA-24-0648)

Seismic resistance (ETA-24-0648)

LEED Logo (LEED-HY-CERTIFICATE)

NSF Logo (NSF-CERTIFICATE)

VOC Logo (VOC-CERTIFICATE)

EPD Logo

Documents

EJOT-eta-24-0646-ITH-hybrid-EN.pdf

DoP ETA 24-0646: Multifix HSF Seismic (pdf)

EJOT-eta-24-0647-ITH-hybrid-EN.pdf

DoP ETA 24-0647: Multifix HSF Seismic (pdf)

EJOT-eta-24-0648-ITH-hybrid-EN.pdf

DoP ETA 24-0648: Multifix HSF Seismic (pdf)

SDS: ITH-HY (Säkerhetsdatablad).pdf

LEED Certificate

NSF Certificate

VOC Certificate

Gel and curing times

Base material temperature	Gel time	Curing Time
+40℃ - +30℃ ℃	2	30
+29℃ - +20℃ ℃	3	30
+19℃ - +15℃ ℃	6	40
+14℃ - +10℃ ℃	10	60
+9℃ - +5℃ ℃	15	120
+4℃ - 0℃ ℃	25	210
-1℃ - -5℃ ℃	50	300

Installation details by rebar diameter

Rebar class	Reber diameter	Drill hole diameter	Base material	Embedment depth (h_nom)	Theoretical resin Consumption	Load definition	Load type	Load value
A500HV	8 mm	10,12 mm	Cracked concrete, C20/25	80 mm	7 ml	frec	V_Rec	6,7 kN
A500HV	8 mm	10,12 mm	Non cracked concrete, C20/25	80 mm	7 ml	frec	N_Rec	13,4 kN
A500HV	8 mm	10,12 mm	Cracked concrete, C20/25	80 mm	7 ml	frec	V_Rec	6,7 kN
A500HV	8 mm	10,12 mm	Non cracked concrete, C20/25	80 mm	7 ml	frec	V_Rec	6,7 kN
A500HV	10 mm	12,14 mm	Cracked concrete, C20/25	90 mm	10 ml	frec	N_Rec	7,4 kN
A500HV	10 mm	12,14 mm	Cracked concrete, C20/25	90 mm	10 ml	frec	V_Rec	8,4 kN
A500HV	10 mm	12,14 mm	Non cracked concrete, C20/25	90 mm	10 ml	frec	N_Rec	18,8 kN
A500HV	10 mm	12,14 mm	Non cracked concrete, C20/25	90 mm	10 ml	frec	V_Rec	10,5 kN
A500HV	12 mm	14,16 mm	Cracked concrete, C20/25	110 mm	15 ml	frec	N_Rec	11,8 kN
A500HV	12 mm	14,16 mm	Cracked concrete, C20/25	110 mm	15 ml	frec	V_Rec	11,7 kN
A500HV	12 mm	14,16 mm	Non cracked concrete, C20/25	110 mm	15 ml	frec	N_Rec	27 kN
A500HV	12 mm	14,16 mm	Non cracked concrete, C20/25	110 mm	15 ml	frec	V_Rec	14,8 kN
A500HV	14 mm	18 mm	Cracked concrete, C20/25	115 mm	20 ml	frec	N_Rec	15,7 kN
A500HV	14 mm	18 mm	Cracked concrete, C20/25	115 mm	20 ml	frec	V_Rec	12,8 kN
A500HV	14 mm	18 mm	Non cracked concrete, C20/25	115 mm	20 ml	frec	N_Rec	28,9 kN
A500HV	14 mm	18 mm	Non cracked concrete, C20/25	115 mm	20 ml	frec	V_Rec	18,0 kN
A500HV	16 mm	20 mm	Cracked concrete, C20/25	125 mm	27 ml	frec	N_Rec	19,4 kN
A500HV	16 mm	20 mm	Cracked concrete, C20/25	125 mm	27 ml	frec	V_Rec	14,8 kN
A500HV	16 mm	20 mm	Non cracked concrete, C20/25	125 mm	27 ml	frec	N_Rec	32,7 kN
A500HV	16 mm	20 mm	Cracked concrete, C20/25	125 mm	27 ml	frec	V_Rec	20,8 kN
A500HV	20 mm	25 mm	Cracked concrete, C20/25	170 mm	56 ml	frec	N_Rec	33,1 kN
A500HV	20 mm	25 mm	Cracked concrete, C20/25	170 mm	56 ml	frec	V_Rec	24,2 kN
A500HV	20 mm	25 mm	Non cracked concrete, C20/25	170 mm	56 ml	frec	N_Rec	51,9 kN
A500HV	20 mm	25 mm	Non cracked concrete, C20/25	170 mm	56 ml	frec	V_Rec	34,1 kN
A500HV	24 mm	30,32 mm	Cracked concrete, C20/25	205 mm	110 ml	frec	N_Rec	47,8 kN
A500HV	24 mm	30,32 mm	Cracked concrete, C20/25	205 mm	110 ml	frec	V_Rec	32,8 kN
A500HV	24 mm	30,32 mm	Non cracked concrete, C20/25	205 mm	110 ml	frec	N_Rec	68,8 kN
A500HV	24 mm	30,32 mm	Non cracked concrete, C20/25	205 mm	110 ml	frec	V_Rec	46,4 kN
A500HV	25 mm	30,32 mm	Cracked concrete, C20/25	210 mm	113 ml	frec	N_Rec	49,9 kN
A500HV	25 mm	30,32 mm	Cracked concrete, C20/25	210 mm	113 ml	frec	V_Rec	34,3 kN
A500HV	25 mm	30,32 mm	Non cracked concrete, C20/25	210 mm	113 ml	frec	N_Rec	71,3 kN
A500HV	25 mm	30,32 mm	Non cracked concrete, C20/25	210 mm	113 ml	frec	V_Rec	48,4 kN
A500HV	28 mm	35 mm	Cracked concrete, C20/25	250 mm	161 ml	frec	N_Rec	64,8 kN
A500HV	28 mm	35 mm	Cracked concrete, C20/25	250 mm	161 ml	frec	V_Rec	45,2 kN
A500HV	28 mm	35 mm	Non cracked concrete, C25/30	250 mm	161 ml	frec	N_Rec	92,6 kN
A500HV	28 mm	35 mm	Non cracked concrete, C20/25	250 mm	161 ml	frec	V_Rec	63,8 kN
A500HV	32 mm	40 mm	Cracked concrete, C20/25	270 mm	227 ml	frec	N_Rec	72,7 kN
A500HV	32 mm	40 mm	Cracked concrete, C20/25	270 mm	227 ml	frec	V_Rec	51,7 kN
A500HV	32 mm	40 mm	Non cracked concrete, C20/25	270 mm	227 ml	frec	N_Rec	103,9 kN
A500HV	32 mm	40 mm	Non cracked concrete, C20/25	270 mm	227 ml	frec	V_Rec	73,0 kN

Performance data for solid base material

Stud Size	Property class	Base material	Embedment depth (h_nom)	Min base material thickness	Installation Torque	Load type	Load value
M8	Stud steel 8.8	Cracked concrete, C20/25	80 mm	160 mm	≤ 10 Nm	N_Rec	6,7 kN
M8	Stud steel 8.8	Cracked concrete, C20/25	80 mm	160 mm	≤ 10 Nm	V_Rec	6,9 kN
M8	Stud steel 8.8	Non cracked concrete, C20/25	80 mm	160 mm	≤ 10 Nm	N_Rec	13,8 kN
M8	Stud steel 8.8	Non cracked concrete, C20/25	80 mm	160 mm	≤ 10 Nm	V_Rec	9,7 kN
M10	Stud steel 8.8	Cracked concrete, C20/25	90 mm	180 mm	≤ 20 Nm	N_Rec	10,1 kN
M10	Stud steel 8.8	Cracked concrete, C20/25	80 mm	160 mm	≤ 20 Nm	V_Rec	8,4 kN
M10	Stud steel 8.8	Non cracked concrete, C20/25	80 mm	160 mm	≤ 20 Nm	N_Rec	20,0 kN
M10	Stud steel 8.8	Non cracked concrete, C20/25	80 mm	160 mm	≤ 20 Nm	V_Rec	11,9 kN
M12	Stud steel 8.8	Cracked concrete, C20/25	110 mm	220 mm	≤ 40 Nm	N_Rec	15,8 kN
M12	Stud steel 8.8	Cracked concrete, C20/25	110 mm	220 mm	≤ 40 Nm	V_Rec	14,8 kN
M12	Stud steel 8.8	Non cracked concrete, C20/25	110 mm	220 mm	≤ 40 Nm	N_Rec	27,0 kN
M12	Stud steel 8.8	Non cracked concrete, C20/25	110 mm	220 mm	≤ 40 Nm	V_Rec	16,5 kN
M16	Stud steel 8.8	Cracked concrete, C20/25	125 mm	250 mm	≤ 60 Nm	N_Rec	22,9 kN
M16	Stud steel 8.8	Cracked concrete, C20/25	125 mm	250 mm	≤ 60 Nm	V_Rec	14,8 kN
M16	Stud steel 8.8	Cracked concrete, C20/25	125 mm	250 mm	≤ 60 Nm	N_Rec	32,7 kN
M16	Stud steel 8.8	Cracked concrete, C20/25	125 mm	250 mm	≤ 60 Nm	V_Rec	20,8 kN
M20	Stud steel 8.8	Cracked concrete, C20/25	170 mm	340 mm	≤ 100 Nm	N_Rec	36,3 kN
M20	Stud steel 8.8	Cracked concrete, C20/25	170 mm	340 mm	≤ 100 Nm	V_Rec	24,2 kN
M20	Stud steel 8.8	Non cracked concrete, C20/25	170 mm	340 mm	≤ 100 Nm	N_Rec	51,9 kN
M20	Stud steel 8.8	Non cracked concrete, C20/25	170 mm	340 mm	≤ 100 Nm	V_Rec	34,1 kN
M24	Stud steel 8.8	Cracked concrete, C20/25	210 mm	420 mm	≤ 170 Nm	N_Rec	49,9 kN
M24	Stud steel 8.8	Cracked concrete, C20/25	210 mm	420 mm	≤ 170 Nm	V_Rec	34,0 kN
M24	Stud steel 8.8	Non cracked concrete, C20/25	210 mm	420 mm	≤ 170 Nm	N_Rec	71,3 kN
M24	Stud steel 8.8	Non cracked concrete, C20/25	210 mm	420 mm	≤ 170 Nm	V_Rec	48,1 kN
M30	Stud steel 8.8	Cracked concrete, C20/25	270 mm	540 mm	≤ 300 Nm	N_Rec	72,7 kN
M30	Stud steel 8.8	Cracked concrete, C20/25	270 mm	540 mm	≤ 300 Nm	V_Rec	51,2 kN
M30	Stud steel 8.8	Non cracked concrete, C20/25	270 mm	540 mm	≤ 300 Nm	N_Rec	103,9 kN
M30	Stud steel 8.8	Non cracked concrete, C20/25	270 mm	540 mm	≤ 300 Nm	V_Rec	72,3 kN

Installation details for solid base material

Stud Size	SW	Hole in fixture	Drill hole diameter	Min hole depth	Embedment depth (h_nom)	Theoretical resin Consumption
M8	13 mm	≤ 9 mm	10 mm	80 mm	80 mm	5 ml
M10	17 mm	≤ 12 mm	12 mm	90 mm	90 mm	7 ml
M12	19 mm	≤ 14 mm	14 mm	110 mm	110 mm	12 ml
M16	24 mm	≤ 18 mm	18 mm	125 mm	125 mm	22 ml
M20	30 mm	≤ 22 mm	22 mm	170 mm	170 mm	44 ml
M24	36 mm	≤ 26 mm	28 mm	210 mm	210 mm	87 ml
M27	41 mm	≤ 30 mm	30 mm	250 mm	250 mm	118 ml
M30	46 mm	≤ 33 mm	35 mm	270 mm	270 mm	174 ml
