KBT 8 Nylon Anchor
ARTICLENUMBER9640075108

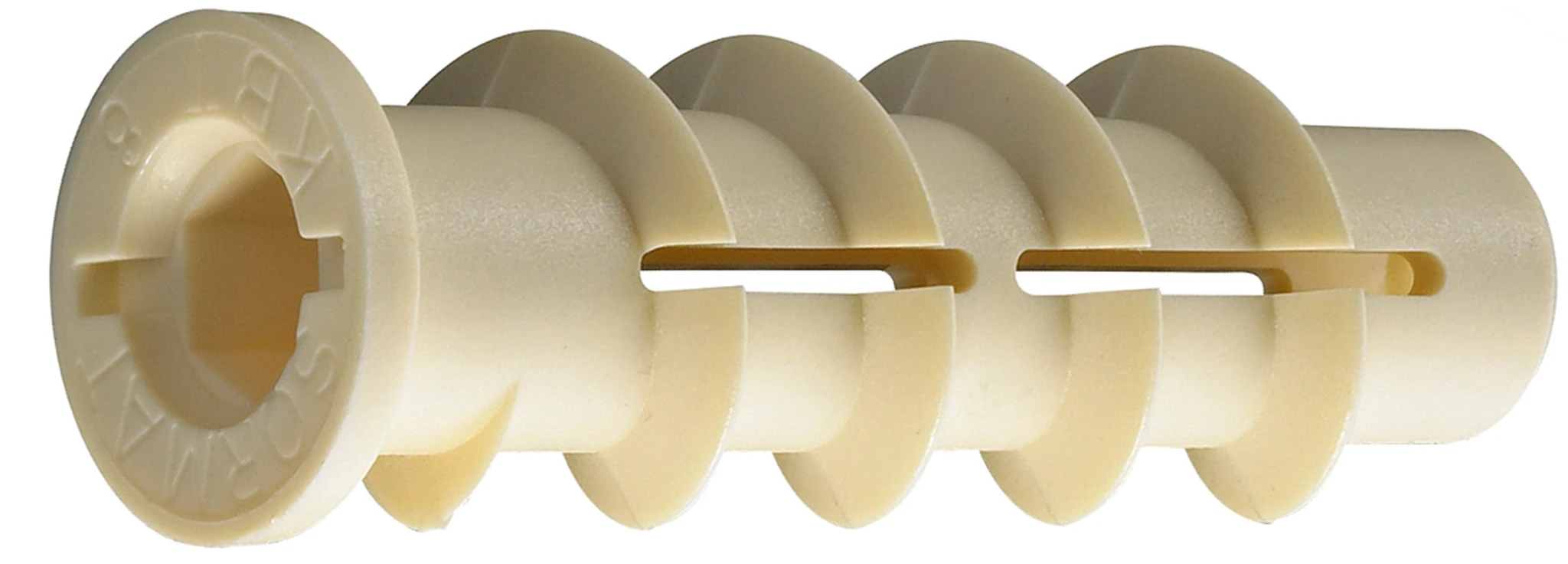

Nylon plug with internal thread for aerated concrete
- Internally threaded nylon plug with a coarse external threading for pre-installation in aerated concrete.
- The coarse spiral-shaped outer thread provides a solid grip.
- Suitable screws are wood-, universal- and machine threaded screws, bolts and studs.
- Installation is most convenient using the KBT setting tool. Can be installed using an electric drill/driver with low torque or manually with a hex wrench.
- Temperature range in use -40 °C to +80 °C
- Suitable conditions related to screw material: ZP for dry indoor and temporary outdoor use; HGD/MG and A2 for dry and humid indoor use, outdoor in rural areas only; A4 for indoor, outdoor and industrial use.
Product overview
Packaging
Carton: 25 / Pack: 300Weight
5.9 gEAN
6416031751080Material
plasticSuitable Conditions
Dry indoor, Humid indoor, rural outdoor, OutdoorApplications
- Facade fixings
- Rainwater pipes
- Pipe supports
- Lighting
- Radiators
- Signs
- Letterboxes
- Motion sensors
- Distance installations
- Electrical installations
- HVAC and plumbing fixings
Base Material
Suitable for
Aerated concrete block
Aerated concrete block

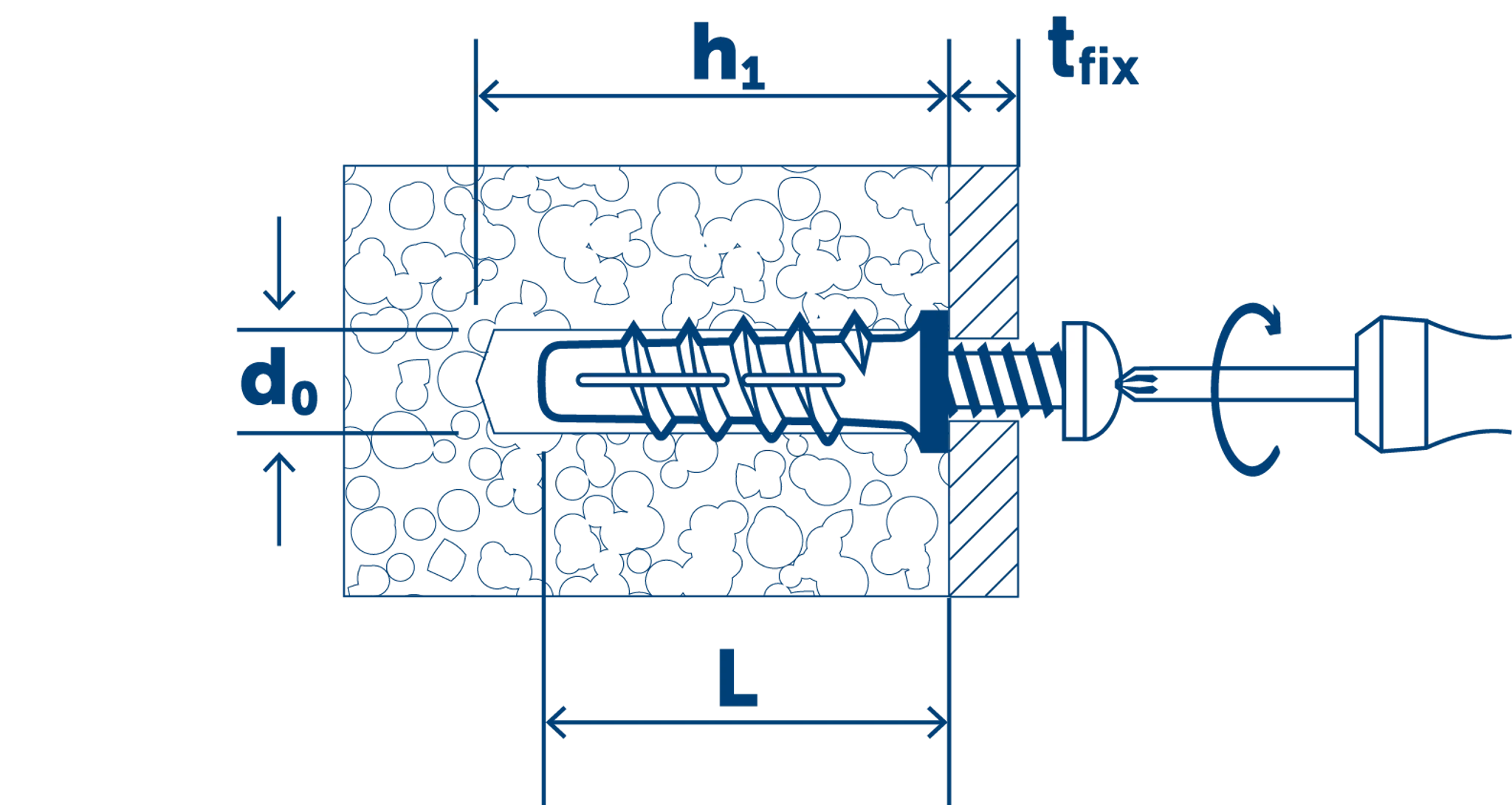

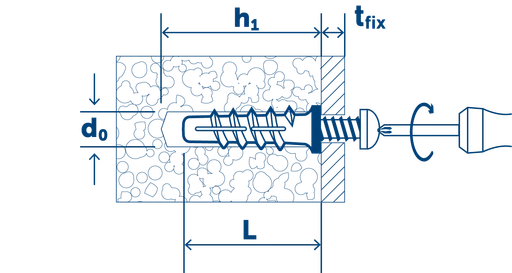

Technical Data
Length (L)
60 mmDrill hole diameter (d0)
12 mmInner drive
HEX8Drill hole depth (h1,1)
70 mmSuitable screw diameter (mm)
7,0 - 8,0 / M8Suitable screw length (mm)
0,8 - 1,0 X L + TFIXElectrical number (FI)
1350508HEPAC number (FI)
3254131Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Aerated concrete block, 500 kg/m3 | NRec | mm | 0,7 kN | ||
| Aerated concrete block, AAC 1,5 | NRec | mm | 0,25 kN | ||
| Aerated concrete block, AAC 2,5 | NRec | mm | 0,45 kN | ||
| Aerated concrete block, AAC 4,0 | NRec | mm | 0,70 kN | ||
| Aerated concrete block, Aerated concrete 400 kg/m3 | NRec | mm | 0,4 kN | ||
| Aerated concrete block, Aerated concrete 450 kg/m3 | NRec | mm | 0,6 kN |
