DIY J+ 16x65 ZP Sormat (4 pcs) drop in a

ARTICLENUMBER9640094319

Zinc plated drop in anchor without flange

  • Drop in anchors for pre-installation with an installation tool.
  • Internal thread for metric bolts and rods.
  • Suitable bolt length is 1-1,5 x the nominal size of the anchor + fixture thickness.
  • ZP for dry indoor and temporary outdoor use.

Product overview

Packaging

Bag: 4 / Carton: 4 / Pack: 20

Weight

102.15 g

EAN

6416031943195

Surface

zinc-plated

Base Material

Approved for

Cracked concrete
Non cracked concrete

Suitable for

Natural stone
Solid clay brick

Technical Data

Length (L)

65 mm

Thread

M16

Drill hole diameter (d0)

20 mm

Hole in fixture (df)

18 mm

Thread length (f)

27 mm

Drill hole depth (h1,1)

70 mm

Nominal setting depth (hnom,1)

65 mm

Effective setting depth (hef,1)

65 mm

Minimum base material thickness (hmin,1)

130 mm

Installation torque max (Nm) (Tinst)

60

Electrical number (FI)

1324059

Approvals / Certificates

ETA & DOP (ETA-22-0912)
Fire resistance (ETA-22-0912)
CE Sign (ETA-22-0912)
ETA & DOP (ETA-22-0913)
Fire resistance (ETA-22-0913)
CE Sign (ETA-22-0913)

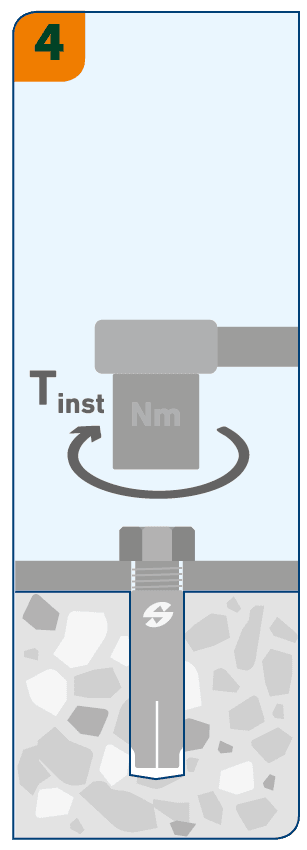

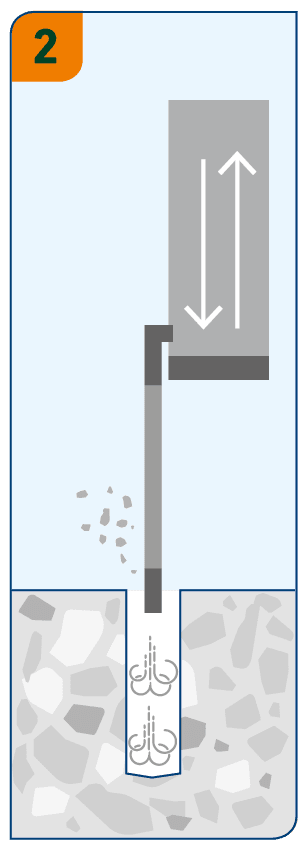

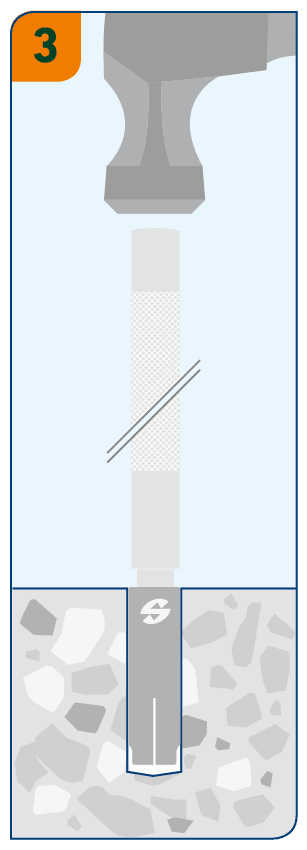

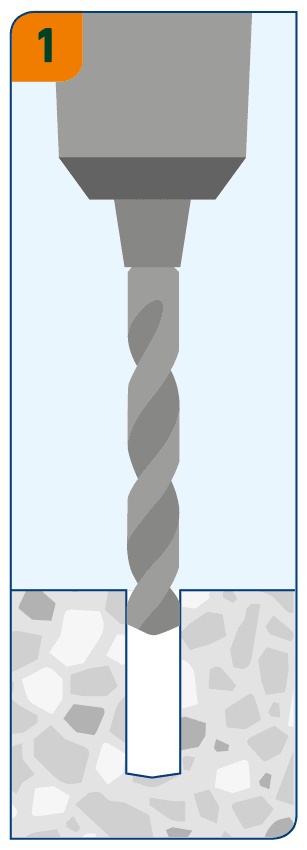

Installation

Manual ImageManual ImageManual ImageManual Image
