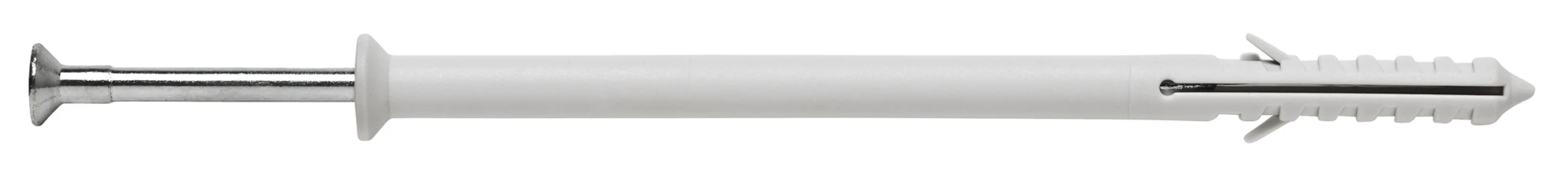

DIY LYT 8/140 UK KP Nail Plug ZP (5 PCS)
ARTICLENUMBER9640095240
Time-saving, simple Speedplug for light-duty fixings
- Preassembled with nailscrew, ready-to-install nylon speedplugs for hammer-in -type through fixings.
- Nailscrew head with pozidrive slot for removing or adjusting the anchor.
- Plug collars function as plastic insulating washers thus preventing touch-corrosion from taking place.
- ZP for dry indoor and temporary outdoor use.
Product overview
Packaging
Bag: 5 / Carton: 5 / Pack: 50Weight
20.5 gEAN
6416031952401Material
plastic / steelSurface
zinc-platedSuitable Conditions
Dry indoorApplications
- Substructures
- Cabinets
- Baseboards
- Battens
- Cable ducts
- Cable clamps
- Pipe supports
Base Material
Approved for
Non cracked concrete
Solid clay brick
Suitable for
Natural stone
Perforated clay brick
Technical Data
Length (L)
140 mmDrill hole diameter (d0)
8 mmHole in fixture (df)
8.5 mmFixture thickness (tfix,1)
100 mmNominal setting depth (hnom,1)
40 mmEffective setting depth (hef,1)
40 mmDrill hole depth (h1,1)
150 mmMinimum base material thickness (hmin,1)
100 mmElectrical number (FI)
1372055Approvals / Certificates
Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Non cracked concrete, C20/25 | NRec | 40 mm | 0,3 kN | ||
| Non cracked concrete, C20/25 | VRec | 40 mm | 0,3 kN | ||
| Solid clay brick, fb ≥ 20,5 N/mm2 | NRec | 40 mm | 0,3 kN | ||
| Solid clay brick, fb ≥ 20,5 N/mm2 | VRec | 40 mm | 0,3 kN |
