DIY S-CSA+ HEX 8x55/5 ML (5 PCS)
ARTICLENUMBER9640095981
ETA-approved heavy-duty concrete screws for high loads
- Self-tapping, screw anchors for push-through installations.
- Requires a small drill hole diameter. No prescribed tightening torque.
- No expansion forces allowing for small edge distances and spacings.
- Fully removable.
- Seismic performance category C2 with hef,2.
- ZP for dry indoor use.
Product overview
Packaging
Bag: 5 / Carton: 5 / Pack: 25Weight
30.5 gEAN
6416031959813Material
steelSurface
galvanic ZNSuitable Conditions
Dry indoorApplications
- Facade scaffoldings
- Temporary fixings
- Seatings
- Shelves
- Cable racks
- Handrails
- Battens
Base Material
Approved for
Cracked concrete
Non cracked concrete
Suitable for
Solid clay brick
Solid sand-lime brick

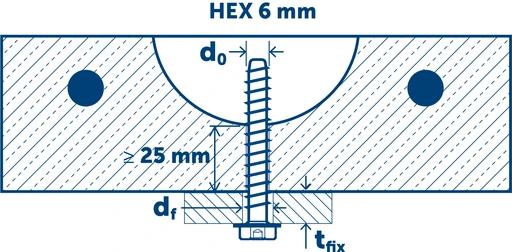

Technical Data
Length (L)
55 mmDrill hole diameter (d0)
8 mmFixture thickness (tfix,1)
5 mmOuter drive
AF13Hole in fixture (df)
12 mmNominal setting depth (hnom,1)
50 mmEffective setting depth (hef,1)
39.2 mmDrill hole depth (h1,1)
60 mmHead diameter (dk)
17.5 mmInstallation torque max (Nm) (Tinst)
45Minimum base material thickness (hmin,1)
100 mm
