LIEBIG® Step IronAnchor BLS M8-14/60SAA4
ARTICLENUMBER9650040060
The only Step Iron Anchor with ETA on the market
- Automatically self-undercutting, unique heavy duty anchor for push-through installations.
- Used for fixing step irons. The special plastic sleeve prevents contact corrosion between the step iron and the anchor.
- Step Iron Anchor shares the characteristics and performance of the SUPERPLUS self-undercutting anchors.
- Easy to install, even in difficult to access areas.
- A4 for indoor, outdoor and industrial use.
Product overview
Properties
Stainless steel A4-80, threaded stud, nut, washer, special plastic sleevePackaging
Carton: 25 / Pack: 125 / Pallet: 7000Weight
90 gEAN
4061245001630Material
stainless steel A4Suitable Conditions
Dry indoor, Humid indoor, rural outdoor, OutdoorApplications
- Step iron fixings acc. to DIN 1211-3 / DIN 1212-3
Base Material
Approved for
Non cracked concrete
Cracked concrete
Technical Data
Length (L)
115 mmFixture thickness (tfix,1)
25 mmThread
M8Outer drive

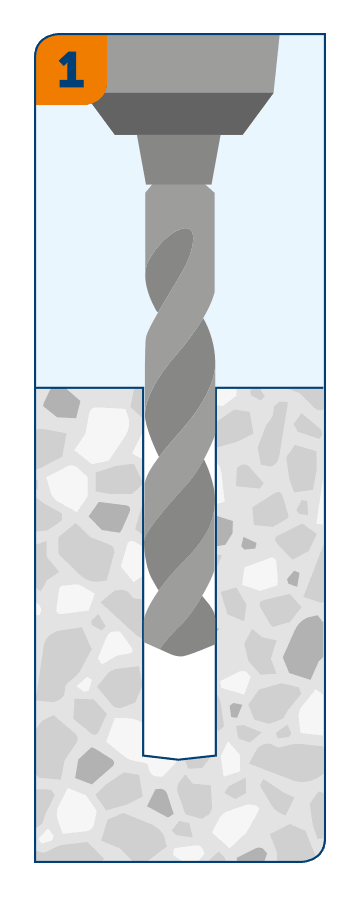

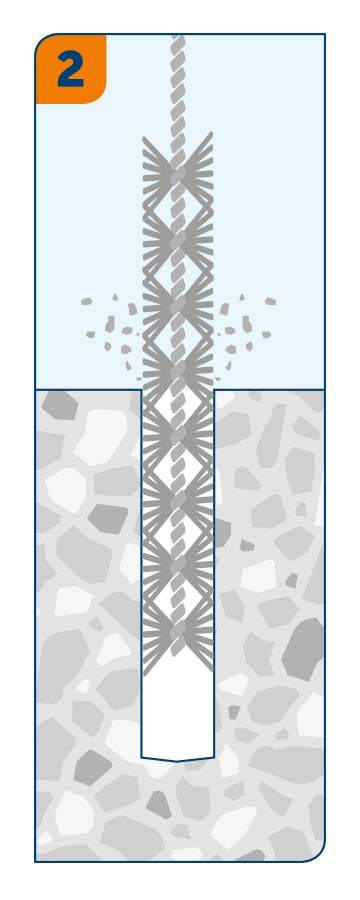

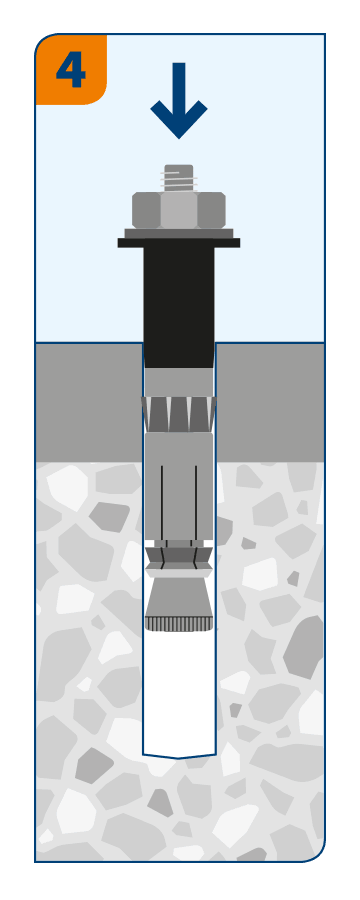

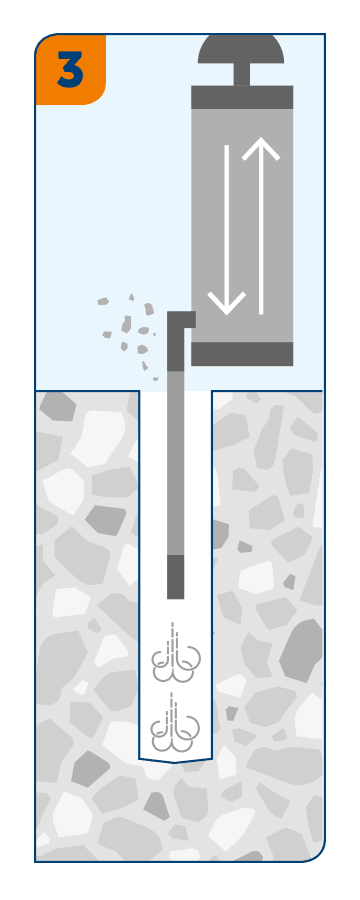

AF16Drill hole diameter (d0)
14 mmHole in fixture (df)
16 mmNominal setting depth (hnom,1)
72 mmEffective setting depth (hef,1)
60 mmDrill hole depth (h1,1)

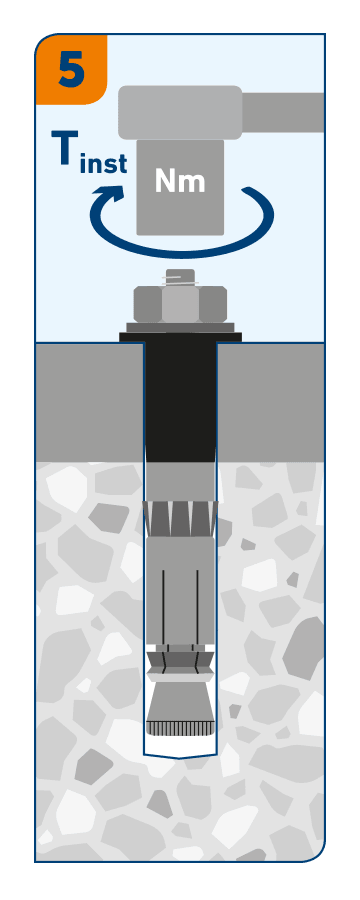

80 mmInstallation torque max (Nm) (Tinst)
25Minimum base material thickness (hmin,1)
120 mmApprovals / Certificates
Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Cracked concrete, C20/25 | NRec | mm | 4,3 kN | ||
| Cracked concrete, C20/25 | VRec | mm | 4,3 kN | ||
| Non cracked concrete, C20/25 | NRec | mm | 6,1 kN | ||
| Non cracked concrete, C20/25 | VRec | mm | 6,1 kN |
