LIEBIG® SUPERPLUS BLS-P M12-20/80/15
ARTICLENUMBER9650180015
Simply the best heavy duty self-undercutting anchor in the world
- Automatically self-undercutting, unique heavy duty anchor for pre-set installations.
- Simplest, quickest and safest solution on the market.
- Economical: No special drill bits, undercut tools or setting tools.
- Minimal expansion forces allow for small spacings and edge distances.
- ZP for dry indoor and temporary outdoor use.
Product overview
Packaging
Carton: 10 / Pack: 50 / Pallet: 2800Weight
217 gEAN
4061245001173Material
steelSurface
zinc-platedSuitable Conditions
Dry indoorApplications
- Elevators
- Power plants (e.g. Nuclear)
- Safety and crash barriers
- Heavy hydraulic pipe support
- Façade elements on slim base material
- Tunnel ventilation
- Cranes and crane runways
- Steel structures
- Machines
- Base plates
Base Material
Approved for
Cracked concrete
Non cracked concrete
Technical Data
Length (L)
135 mmFixture thickness (tfix,1)
15 mmThread
M12Outer drive

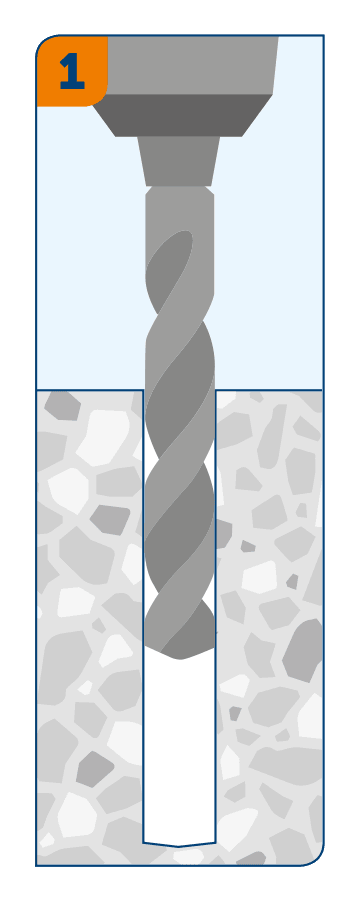

AF19Drill hole diameter (d0)
20 mmHole in fixture (df)
14 mmNominal setting depth (hnom,1)
96 mmEffective setting depth (hef,1)
80 mmDrill hole depth (h1,1)

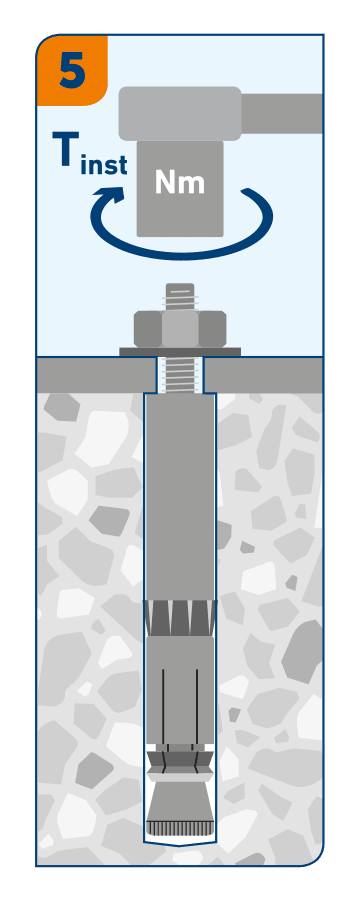

105 mmInstallation torque max (Nm) (Tinst)
80Minimum base material thickness (hmin,1)
160 mmApprovals / Certificates

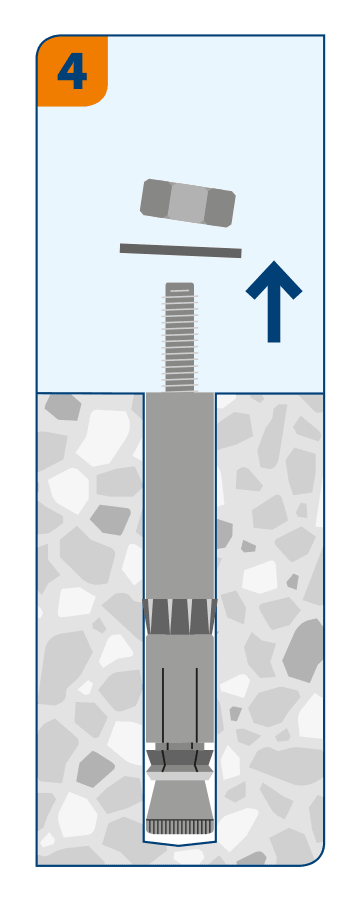

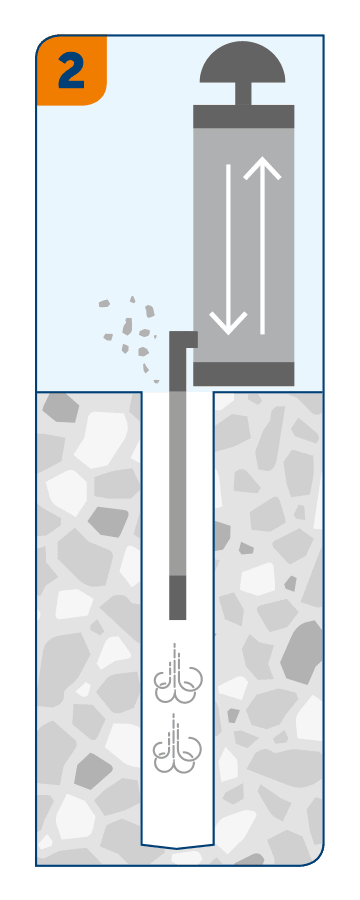

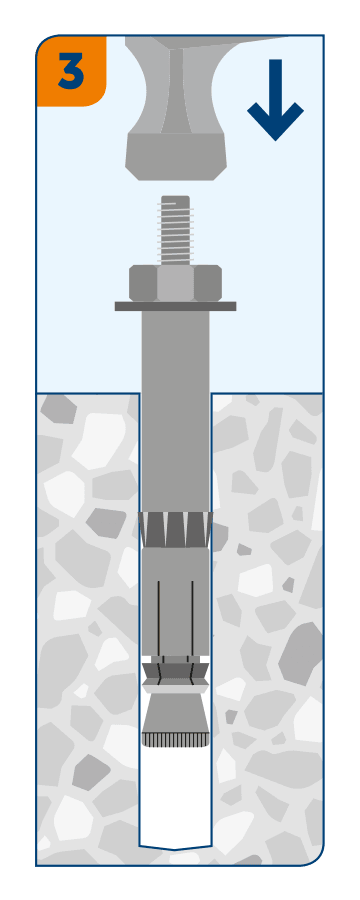

Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Cracked concrete, C20/25 | NRec | 96 mm | 11,9 kN | ||
| Cracked concrete, C20/25 | VRec | 96 mm | 19,3 kN | ||
| Non cracked concrete, C20/25 | NRec | 96 mm | 17,2 kN | ||
| Non cracked concrete, C20/25 | VRec | 96 mm | 19,3 kN |
