LIEBIG® LP Anchor BLS M8-14/BS085 V4A
ARTICLENUMBER9650814085
Unique solution for retrofitting grounding systems
- Automatically self-undercutting, unique heavy duty anchor for pre-set installations.
- Connects retrofitted grounding systems to reinforcing bars in concrete structures.
- Liebig® Superplus Lightning Protection Anchor shares the characteristics and performance of the SUPERPLUS self-undercutting anchors.
- A4 for indoor, outdoor and industrial use.
Product overview
Packaging
Carton: 25 / Pack: 125 / Pallet: 7000Weight
72 gEAN
4061245001111Material
stainless steel A4Suitable Conditions
Dry indoor, Humid indoor, rural outdoor, OutdoorApplications
- Retrofitted grounding systems.
Base Material
Suitable for
Non cracked concrete

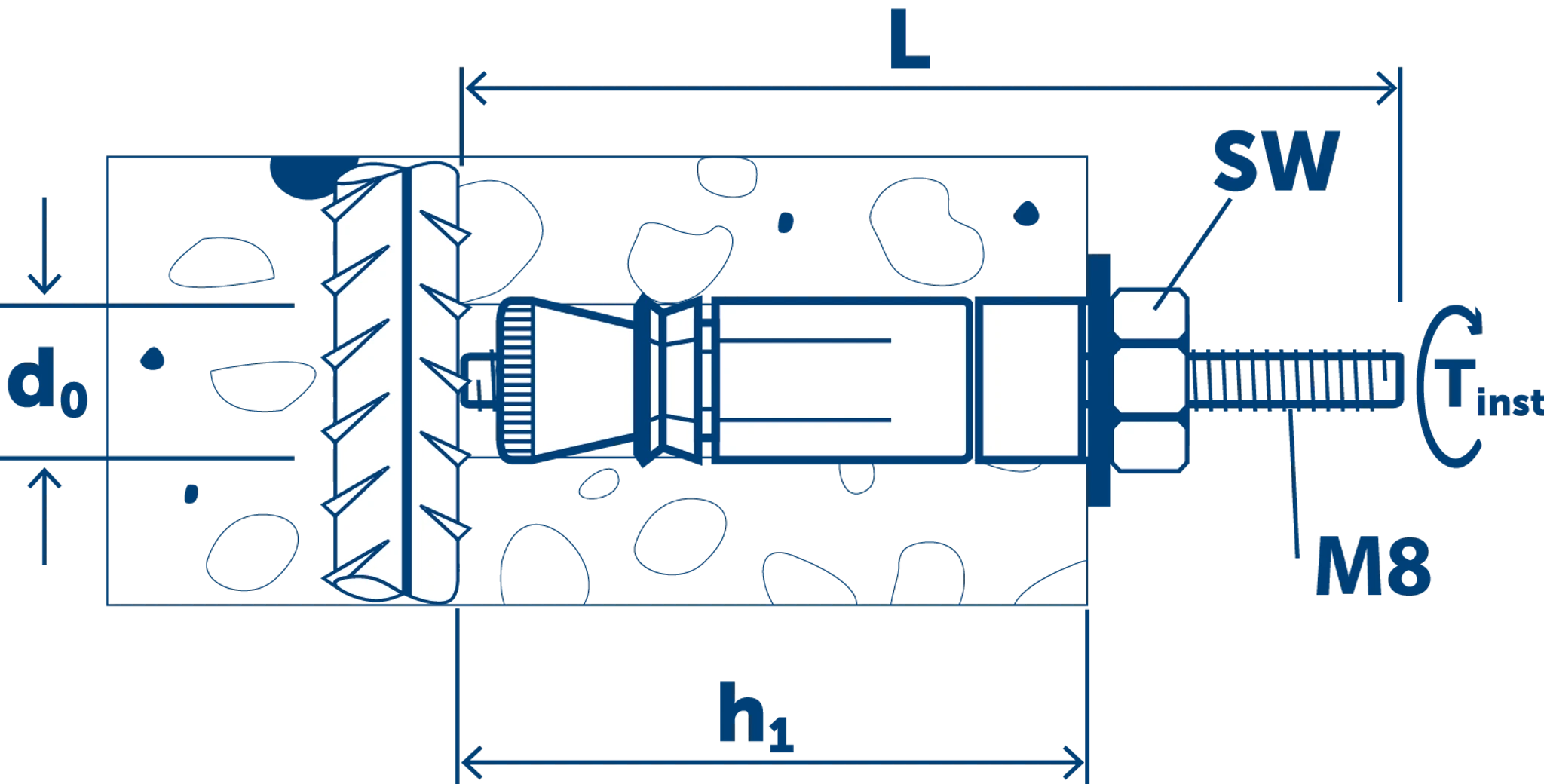

Technical Data
Length (L)
85 mmThread
M8Outer drive
AF13Drill hole diameter (d0)
14 mmEffective setting depth (hef,1)
40 mmDrill hole depth (h1,1)

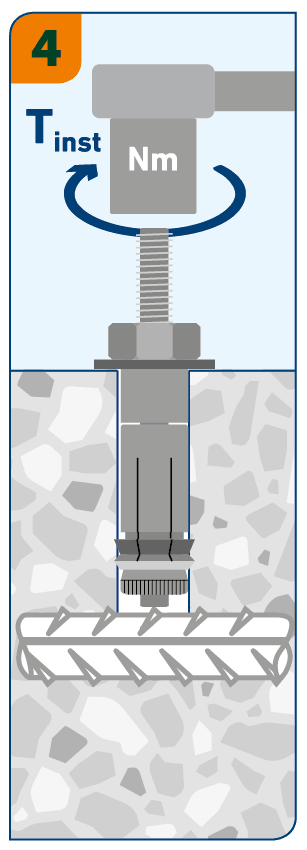

40 mmInstallation torque max (Nm) (Tinst)
25
