LIEBIG® SUPERPLUS BLS M8-14/80/25 A4
ARTICLENUMBER9654080254
Simply the best heavy duty self-undercutting anchor in the world
- Automatically self-undercutting, unique heavy duty anchor for push-through installations.
- Simplest, quickest and safest solution on the market.
- Economical: No special drill bits, undercut tools or setting tools.
- Minimal expansion forces allow for small spacings and edge distances.
- A4 for indoor, outdoor and industrial use.
Product overview
Packaging
Carton: 25 / Pack: 125 / Pallet: 7000Weight
132 gEAN
4061245000732Material
stainless steel A4Suitable Conditions
Dry indoor, Humid indoor, rural outdoor, OutdoorApplications
- Power plants
- Guardrails
- Machines
- Base plates
- For dynamic and seismic loads
- Small edge distances or spacings
Base Material
Approved for
Cracked concrete
Non cracked concrete
Technical Data
Length (L)
130 mmFixture thickness (tfix,1)
25 mmThread
M8Outer drive

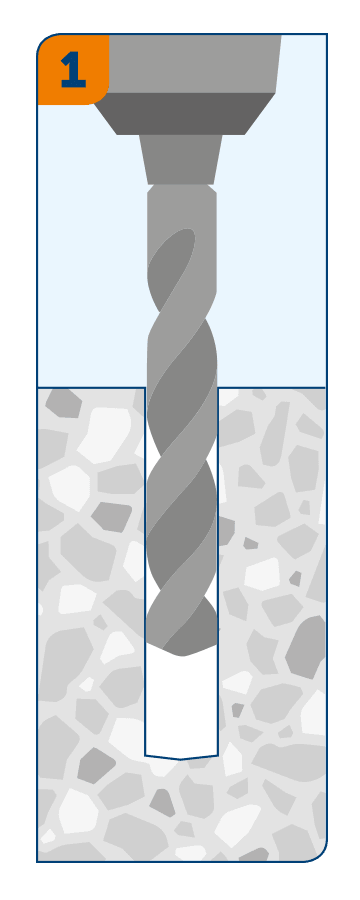

AF16Drill hole diameter (d0)
14 mmHole in fixture (df)
16 mmNominal setting depth (hnom,1)
92 mmEffective setting depth (hef,1)
80 mmDrill hole depth (h1,1)

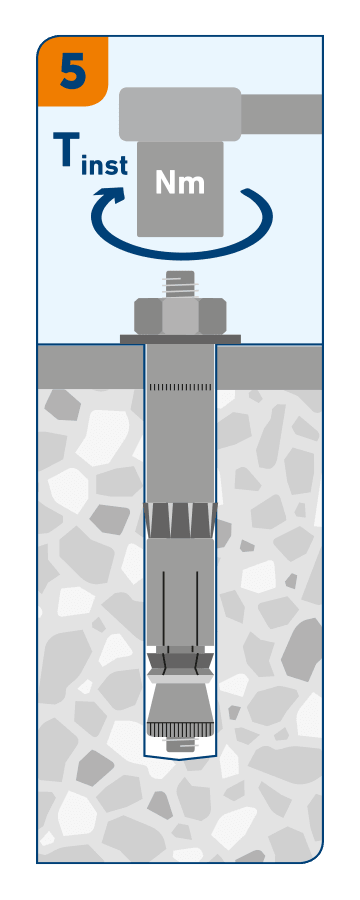

100 mmInstallation torque max (Nm) (Tinst)
25Minimum base material thickness (hmin,1)
160 mmApprovals / Certificates
Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Cracked concrete, C20/25 | NRec | 92 mm | 5,7 kN | ||
| Cracked concrete, C20/25 | VRec | 92 mm | 24,0 kN | ||
| Non cracked concrete, C20/25 | NRec | 92 mm | 13,1 kN | ||
| Non cracked concrete, C20/25 | VRec | 92 mm | 24,0 kN |
