LIEBIG® Safety Bolt B M10-15/70/40
ARTICLENUMBER9655070040
Legendary twin-cone heavy duty anchor for hi-power performance
- Torque-controlled twin-cone heavy duty anchor for push-through installations.
- Suitable for heavy loads due to optimal friction resistance.
- Cylindrical, wide expansion of sleeve over entire length.
- Equipped with domed washers providing a visual installation control.
- ZP for dry indoor and temporary outdoor use.
Product overview
Packaging
Carton: 10 / Pack: 50 / Pallet: 2800Weight
160 gEAN
4061245000480Material
steelSurface
zinc-platedSuitable Conditions
Dry indoorApplications
- Steel structures
- Machines
- Guardrails
- Car lifting systems
- Railings
- Base plates
- Warehouse racks
Base Material
Approved for
Cracked concrete
Non cracked concrete
Suitable for
Natural stone
Technical Data
Length (L)
135 mmDrill hole diameter (d0)
15 mmFixture thickness (tfix,1)
40 mmThread
M10Outer drive
AF17Hole in fixture (df)
17 mmNominal setting depth (hnom,1)
76 mmEffective setting depth (hef,1)
70 mmDrill hole depth (h1,1)

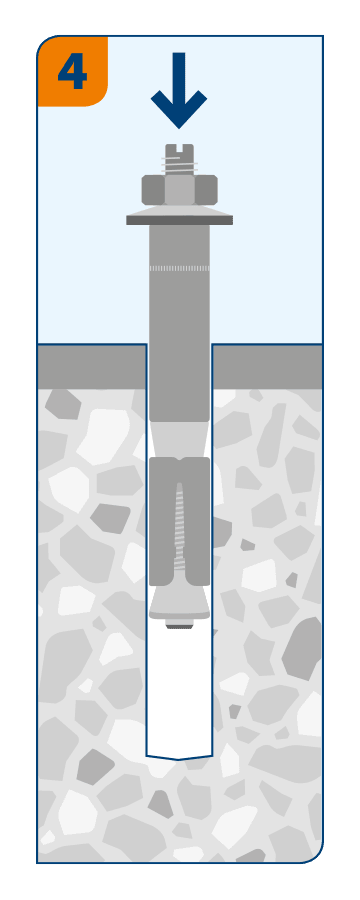

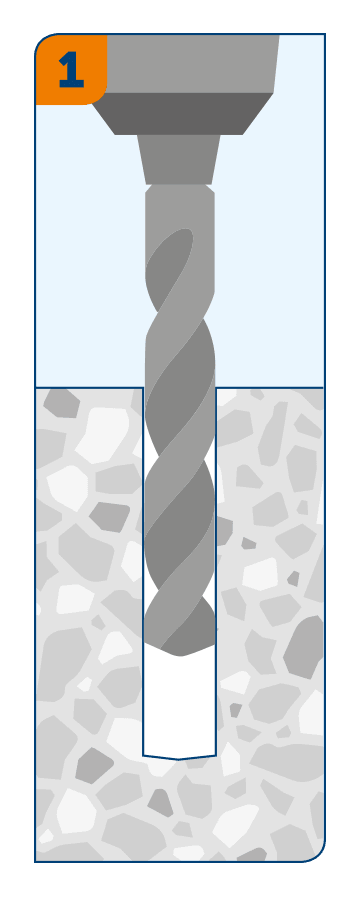

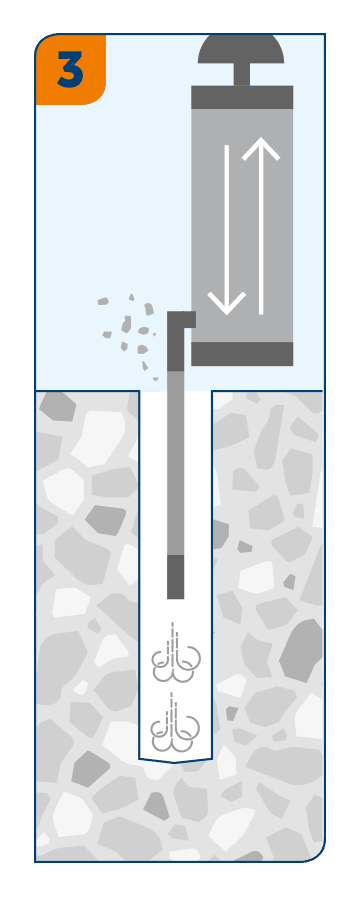

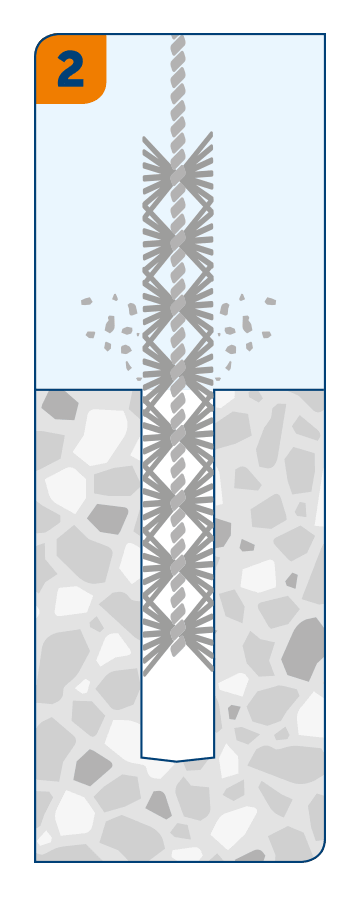

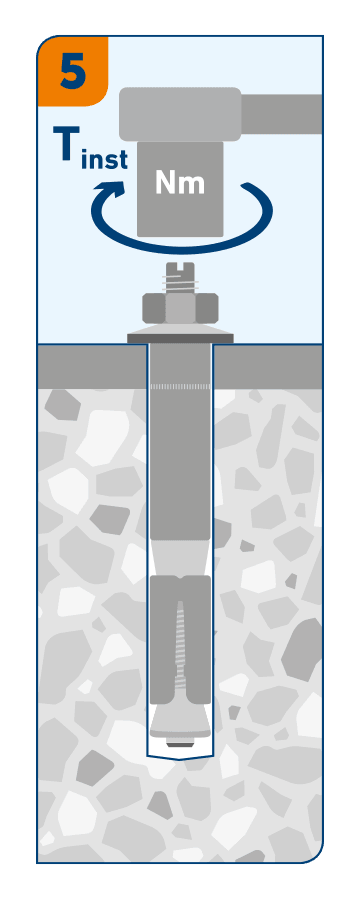

85 mmInstallation torque max (Nm) (Tinst)
40Minimum base material thickness (hmin,1)
140 mmProduct type
BApprovals / Certificates
Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Cracked concrete, C20/25 | NRec | 76 mm | 7,6 kN | ||
| Cracked concrete, C20/25 | VRec | 76 mm | 20,1 kN | ||
| Non cracked concrete, C20/25 | NRec | 76 mm | 9,5 kN | ||
| Non cracked concrete, C20/25 | VRec | 76 mm | 22,3 kN |
