LIEBIG® SUPERPLUS BLS-P M16-25/200/40
ARTICLENUMBER9655210040
Simply the best heavy duty self-undercutting anchor in the world
- Automatically self-undercutting, unique heavy duty anchor for pre-set installations.
- Simplest, quickest and safest solution on the market.
- Economical: No special drill bits, undercut tools or setting tools.
- Minimal expansion forces allow for small spacings and edge distances.
- ZP for dry indoor and temporary outdoor use.
Product overview
Packaging
Carton: 5 / Pack: 20 / Pallet: 560Weight
792 gEAN
4061245000015Material
steelSurface
zinc-platedSuitable Conditions
Dry indoorApplications
- Elevators
- Power plants (e.g. Nuclear)
- Safety and crash barriers
- Heavy hydraulic pipe support
- Façade elements on slim base material
- Tunnel ventilation
- Cranes and crane runways
- Steel structures
- Machines
- Base plates
Base Material
Approved for
Cracked concrete
Non cracked concrete

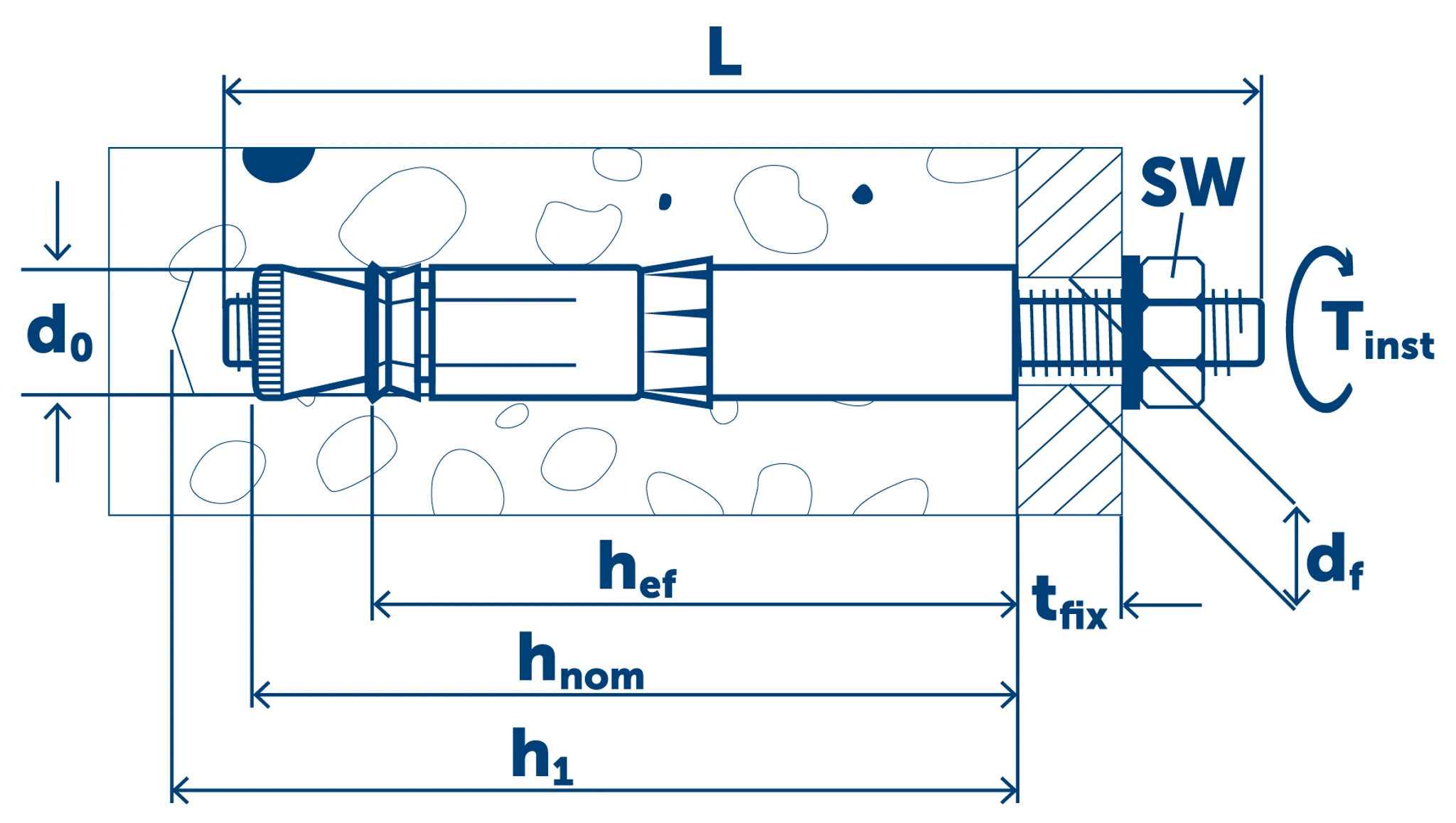

Technical Data
Length (L)
290 mmFixture thickness (tfix,1)
40 mmThread
M16Outer drive
AF24Drill hole diameter (d0)
25 mmHole in fixture (df)
18 mmNominal setting depth (hnom,1)
218 mmEffective setting depth (hef,1)
200 mmDrill hole depth (h1,1)
235 mmInstallation torque max (Nm) (Tinst)
180Minimum base material thickness (hmin,1)
400 mmApprovals / Certificates
Performance Data
Load type | Embedment depth (hnom) | Load direction | Load value | ETA | |
|---|---|---|---|---|---|
| Cracked concrete, C20/25 | NRec | 218 mm | 35,7 kN | ||
| Cracked concrete, C20/25 | VRec | 218 mm | 35,9 kN | ||
| Non cracked concrete, C20/25 | NRec | 218 mm | 59,8 kN | ||
| Non cracked concrete, C20/25 | VRec | 218 mm | 35,9 kN |
